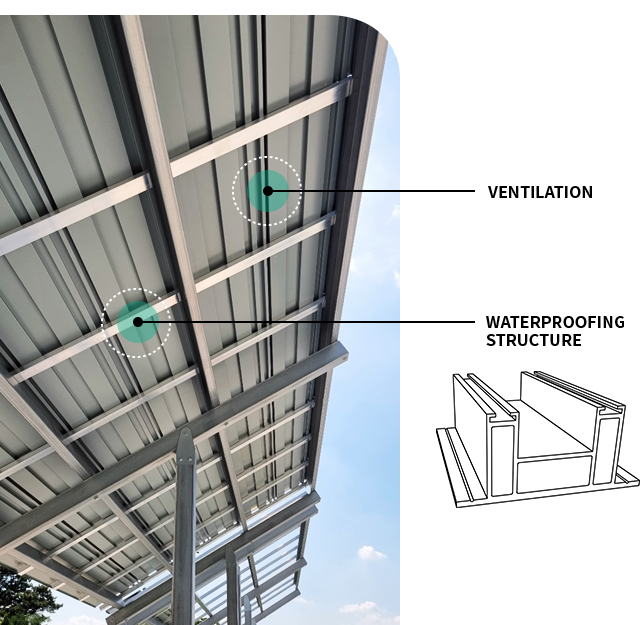

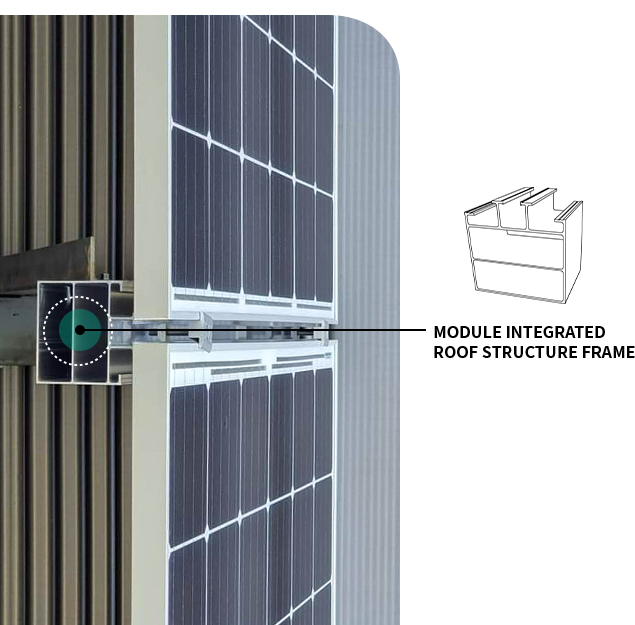

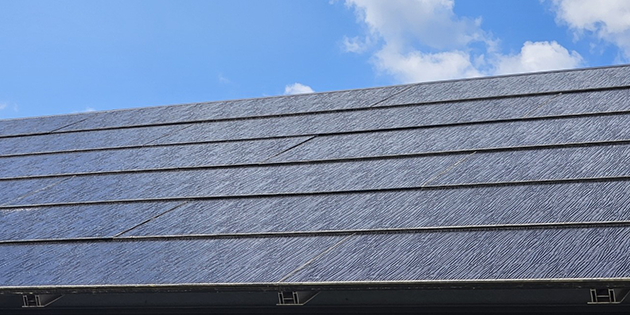

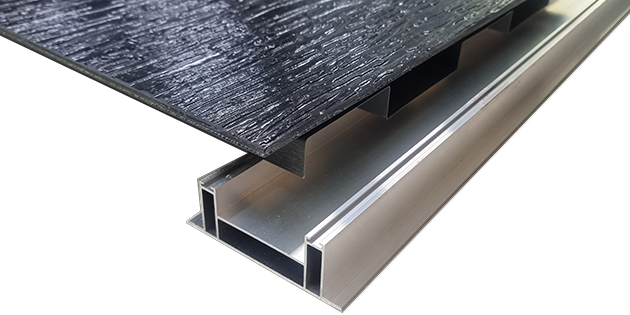

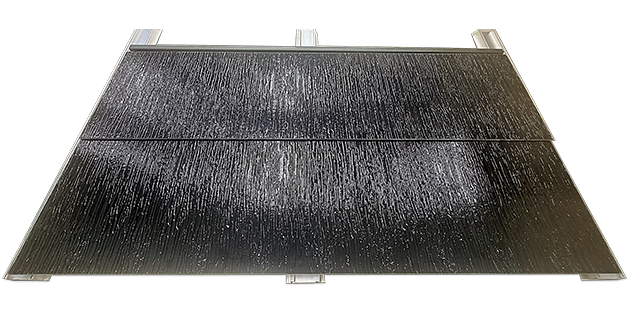

BIPV-Roofing System
Technical
- Technology integrated the waterproof structure frame
system with the photovoltaic module
- Prevent the degradation of efficiency due to
temperature rise with cooling function of ventilation

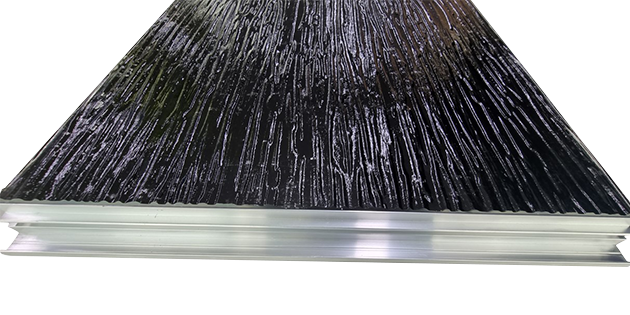

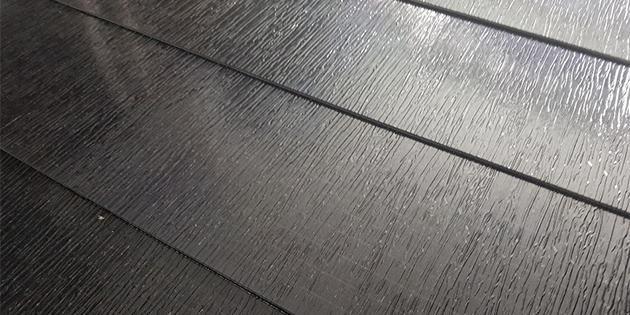

- Galvanized zinc sheet bending technology + Rainy
Pattern Module = Easy Constructability
- BIPV Roofing System that can be installed without
separate support to the building by integrating the existing building
roofing materials with PV
-

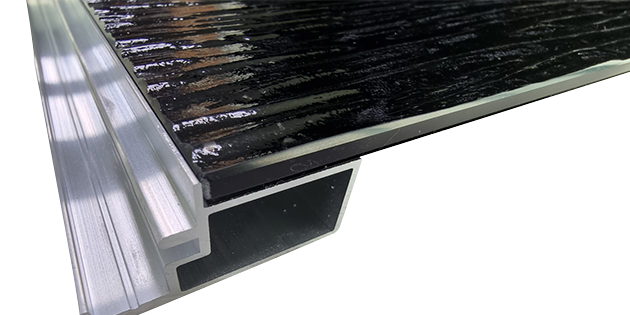

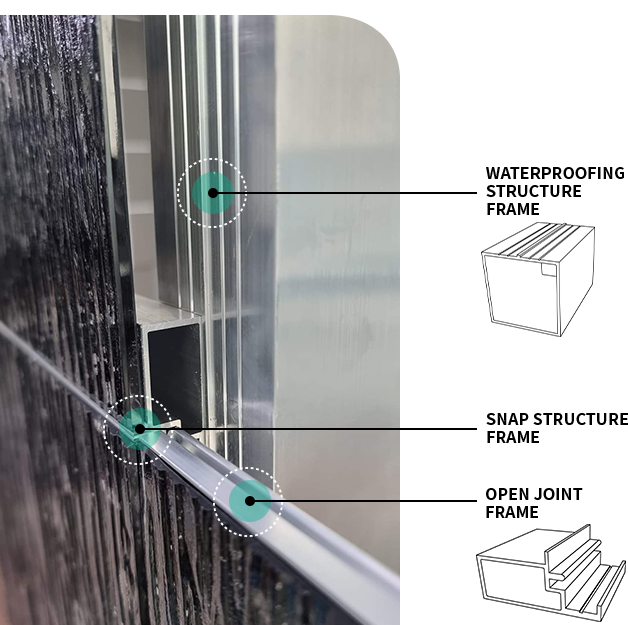

BIPV-Open Joint System
Technical
- Technology that connects the snap style frame with the
truss structure of steel structure in the wall to be installed horizontally
or vertically
- Maximize the constructability with fabrication of
diverse module sizes
- Install photovoltaic panel easily on the wall using
snap style frame technology
- Existing spacer tape, additional stud structure, etc.
are not necessary
- Reduce construction period by that
-

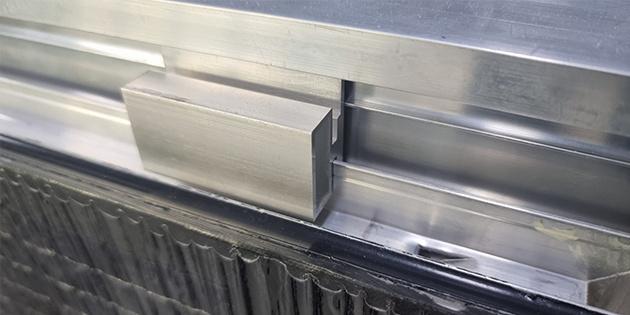

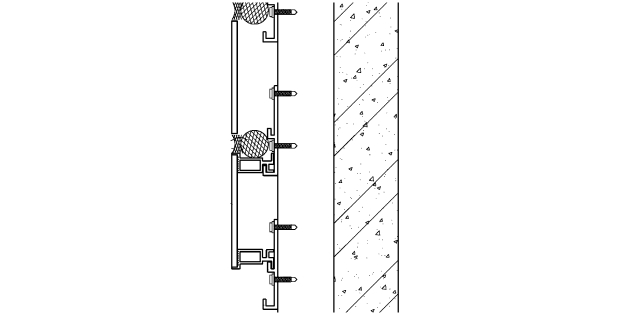

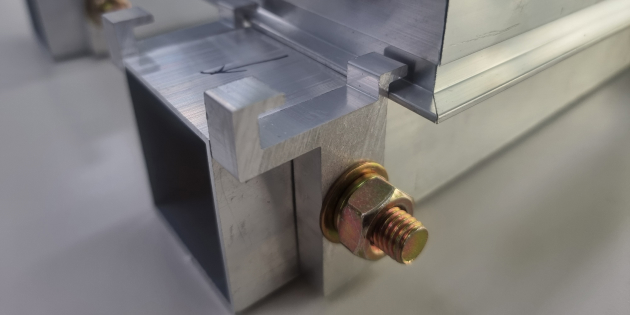

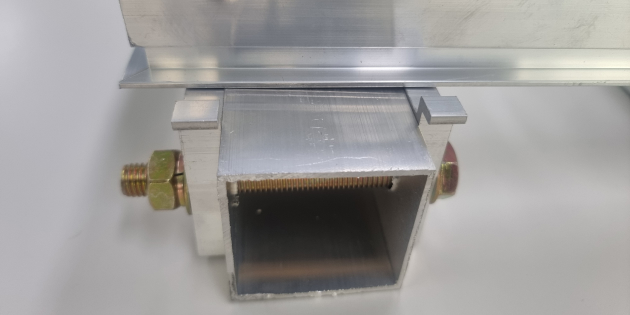

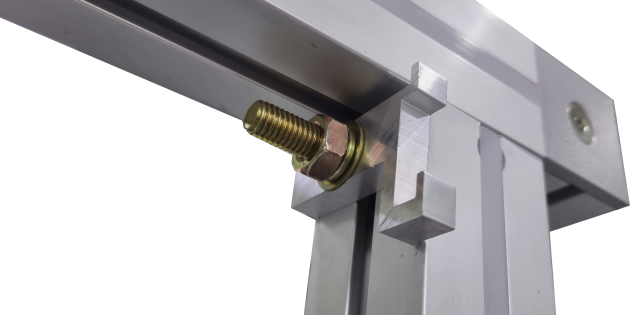

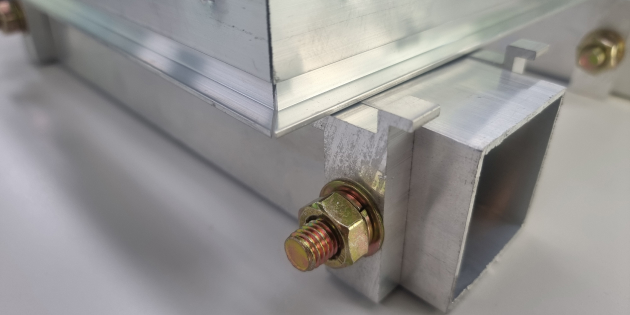

BIPV-Snap Slide type System
Technical
- The BIPV panel is fastened with a snap action in the
up and down directions and a slide action in the left and right directions.
- Existing grid-type steel structures and spacer tape
work are omitted, making exterior wall construction easy.
- Customized installation possible according to
architectural design

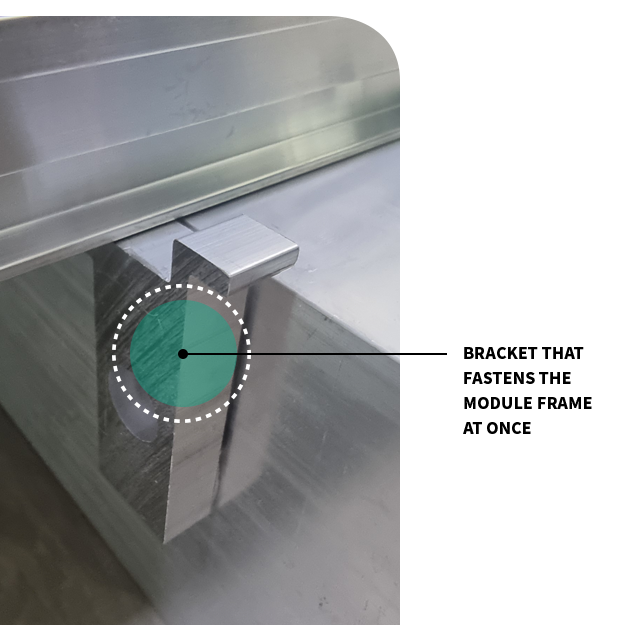

- Constructed at once using a dry method on an aluminum
fixing bracket
- Shorten construction period and reduce costs
-

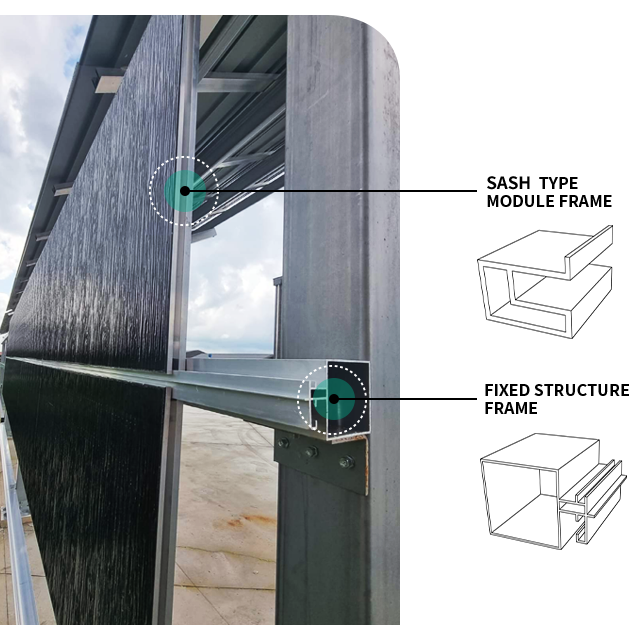

BIPV-Sash Sliding System
Technical
- Connect the photovoltaic panel frame with sassy stud
frame of wall easily
- Maximize constructability with fabrication of diverse
module sizes
- Safe and easy installation
- Existing spacer tape, additional stud structure are
not necessary
- Reduce the construction period by that
-

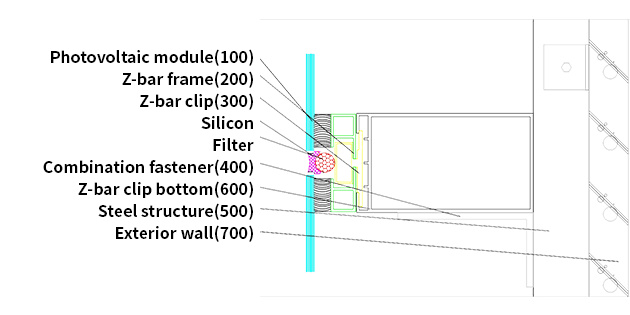

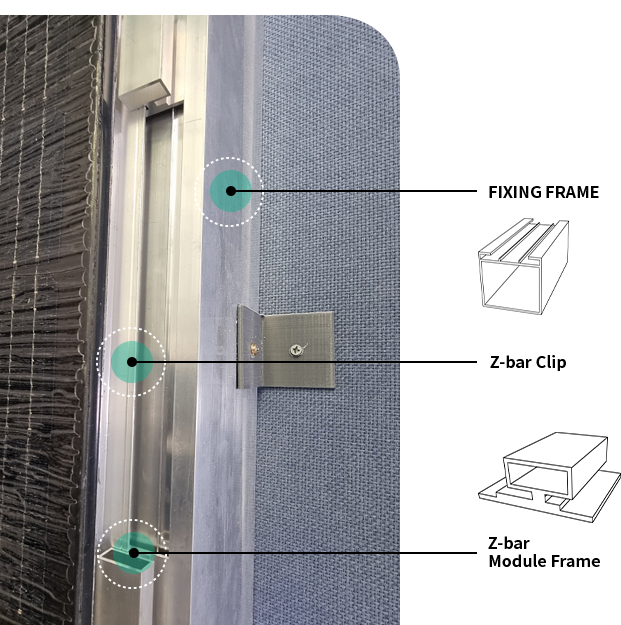

BIPV-Z-bar Clip System
Technical
- Connect the clip style frame of photovoltaic pane with
‘C’ type channel structure of the wall easily
- Maximize the constructability with the fabrication of
diverse module sizes
- Connect the Z-bar frame with ‘C’ type channel of Wall
truss frame unit at one fell swoop
- Existing spacer tape and additional stud structure are
not necessary
- BIPV wall truss system having short construction
period, economic feasibility, shock resistance, easy constructability
-

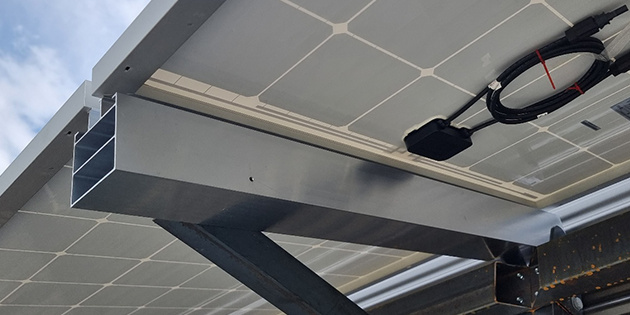

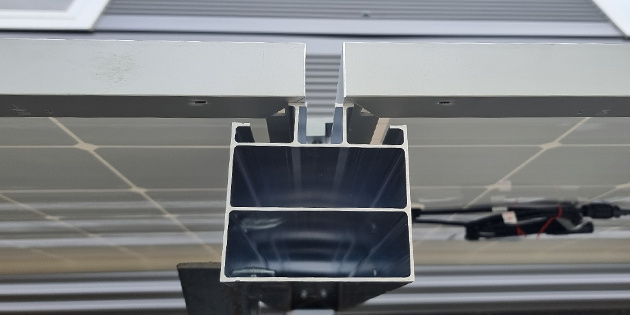

BIPV-Water Proof System
Technical
- Waterproofing structure system that connect existing
photovoltaic panel frame with integrated stud frame of the roof easily
- Maximize the constructability with fabrication of
diverse module sizes
- Waterproofing function using roof integrated stud
frame and batten
- Connect the aluminum frame of photovoltaic panel with
roof type stud frame at one fell swoop
- Existing additional steel structure is not necessary
and reduce construction period
